1.

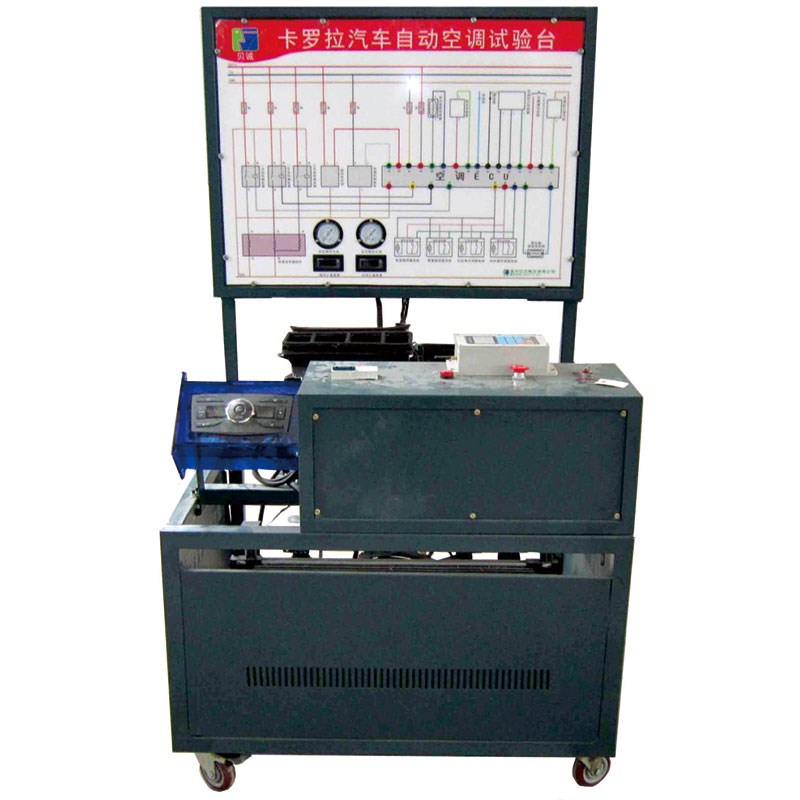

This trainer is made by new air conditioning system, the air conditioner can
operate integrately and independently on
the training platform
2.
the platform is including: air condition compressor, condenser, fan, receiver-drier,
expansion valve, evaporator, high pressure gauge, low pressure gauge, the
outlet of digital thermometer, digital inlets thermometer, operation control
panel, Motor drive control system, leakage protector.
3.
Three-phase motor is the power producer which can drive air condition
compressor working, to operate the air conditioning making panel to show the working
process and principle of air conditional refrigeration system in different
speed
4.the
heater is heat source, to show the working process and principle of air
conditional air
conditioning heating system.
5.
Refrigerant filling mouth equipped with high voltage terminal and low-pressure
end can easily recycling and inject refrigerant as well as vacuuming
6.
equipped with pointer pressure gauge showing the pressure of high pressure and
low pressure, digital thermometer shows evaporator’s temperature of the outlet
and inlet.
7.
the platform provides the training of filling the refrigerant and leakage
detecting.
8.
measurement board: there are Engine
electronic control system circuit diagram and 4mm measured terminal which is
used to measure the voltage, resistance, frequency
or waveform of circuit component.
9.
Fault setting system: numeric keypad and Intelligent wireless networks.
10.
Wireless network intelligent evaluation system
11.
movable bench
12.
external power source: AC380V/220V,
50Hz three phase/single phase
13. power
source: three phase four wire 380V,50HZ
14.
working power: DC112V,29A
15.
SIZE: 1370*1000*1600mm
16.
hot water pressurized circulating pump: AC220V,50HZ,90W
water heater: AC220V,2KW
