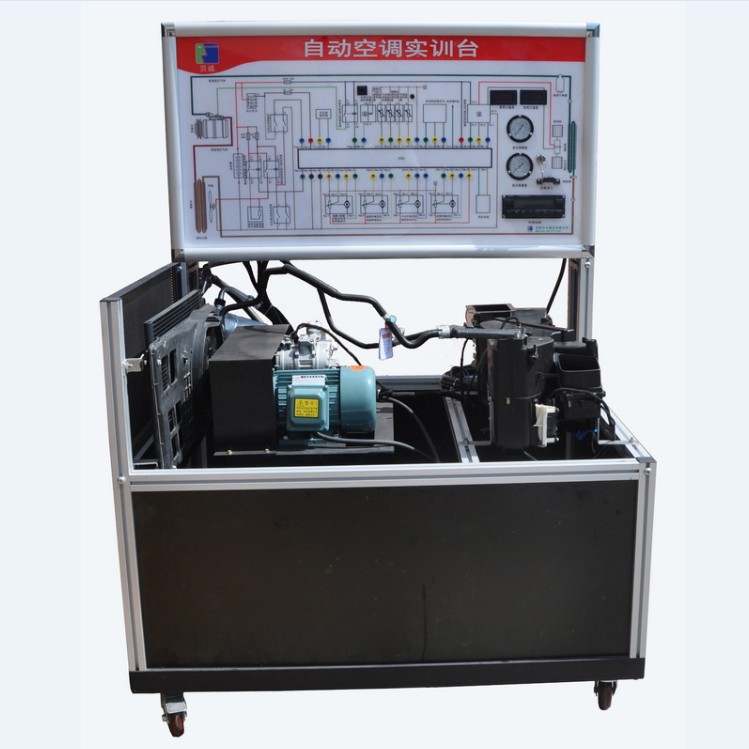

1. This trainer is made by Passat automatic air conditioning system, including: automatic air conditioning control unit, evaporator assembly, servo motor, High and low pressure air conditioning pipe, drive motor , compressor, measurement board, OBD diagnose interface, Fault setting system and mobile holder.

2. to operate by original automatic air conditioning system, to drive air condition compressor working by simulating motor, to drive evaporation tank air channel servo motor working by the automatic air conditioning control panel

3. to practice the vacuumzing, fluoridating experiment, to simulate air condition system fault experiment including line fault, high and low pressure pipeline system failure and air conditioning circuit and pipeline mechanical failure.

4. the instrument shows the following parameter: air conditioning system high voltage line pressure value, air conditioning system low voltage line pressure value, the temperature of air conditioning air intake and the temperature of air conditioning air outlet.

5. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component.

6. Fault setting system: numeric keypad and Intelligent wireless networks.

7. Wireless network intelligent evaluation system

8. movable bench

9. external power source: AC380V/220V, 50Hz three phase/single phase

10. power: AC380V 5.5KW
