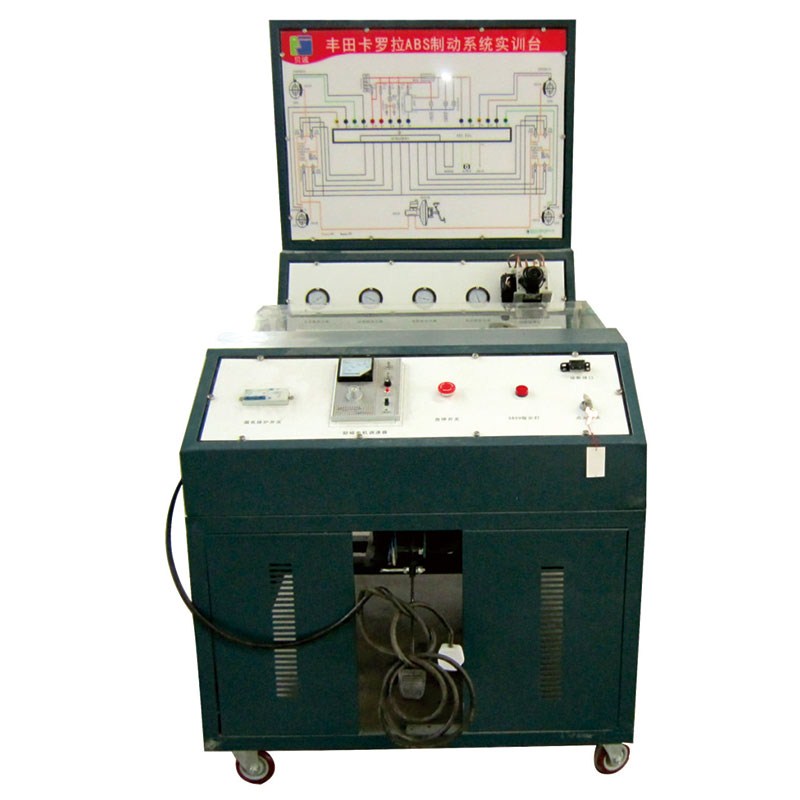

1. This trainer is made by Toyota Corolla ABS anti-lock brake system, variable speed transmission assembly, including: ABS brake, hydraulic circuit, brake cylinder, brake pedal, Vacuum booster tank, brake disc, brake caliper, brake pipe, vehicle speed sensor, instrument panel, motor controller, power system, leakage protector, oil pressure gauge, measurement board, OBD diagnose interface, Fault setting system and mobile holder.

2. with original car layout, three pathways regulating loop, The front wheel adjust alone

3. four pressure gauge which shows the pressure change of brake master cylinder and brake cylinder

4. to simulate the driving state in different speed by electromagnetism speed regulation motor

5. Automatic power off protection, avoid motor reverse drag to protect the electrical apparatus element

6. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component.

7. Fault setting system: numeric keypad and Intelligent wireless networks.

8. Wireless network intelligent evaluation system

9. movable bench

10. external power source: AC380V/220V, 50Hz three phase/single phase

11. power: AC380V 5.5KW

12. SIZE: 1250*900*1750mm
