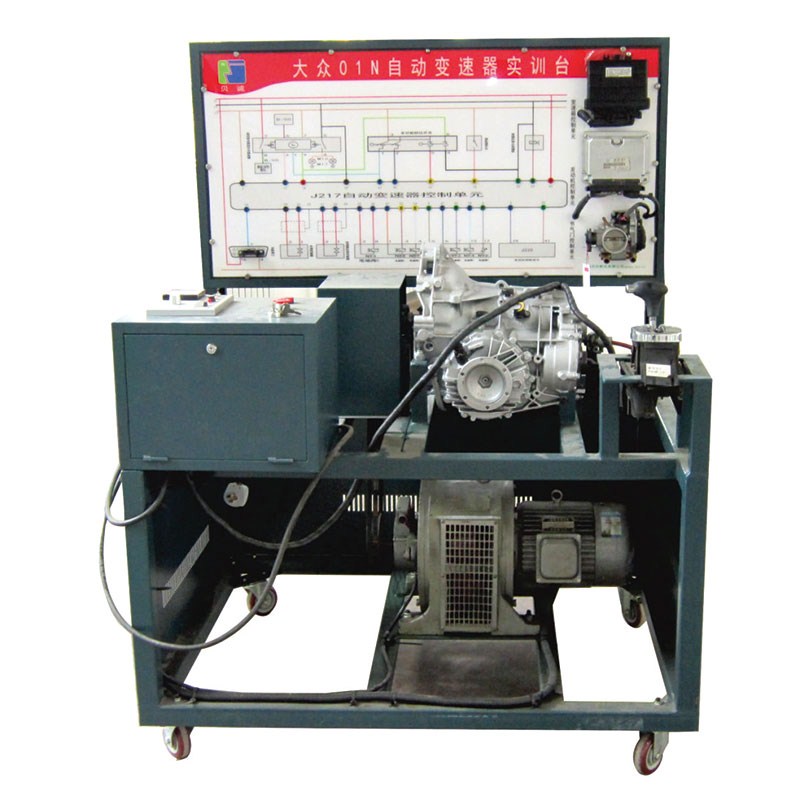

1. This trainer is made by automatic gearbox, including: automatic gearbox assembly, automatic gearbox control system, gearshift assembly, Transmission radiator，three-phase motor，throttle body assembly，The crankshaft sensor and analog device， power system, ignition device, automobile instrument assembly, operating console, measurement board, OBD diagnose interface, Fault setting system and mobile holder

2. three-phase speed-adjustment motor provide the motivation, show the gear of automatic gearbox

3. Gear indicator light observe gear distribution, the oil pressure gauge to observe the change of gear oil, the output shaft speed meter to observe the output shaft speed and judge the shift, brake lights working situation.

4. Use hydraulic mechanical loading way, put pressure on brake disc to make power by hydraulic system

5. operating console: to start/shut the engine, accelerator pedal adjust the revolving speed of engine. Including: oil pressure gauge, leakage protector, ignition lock, accelerator pedal and brake pedal.

6. equipped with OBD diagnose interface which is convenient to use diagnostic apparatus to test the fault code and waveform.

7. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component.

8. Fault setting system: numeric keypad and Intelligent wireless networks.

9. Wireless network intelligent evaluation system

10. movable bench

11. external power source: AC380V/220V, 50Hz three phase/single phase

12. power: AC380V 5.5KW

13. SIZE: 1250*850*1750mm
