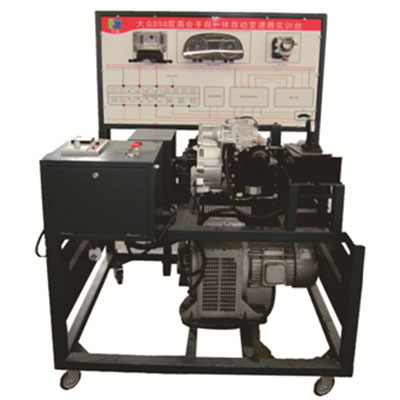

1. This trainer is made by Volkswagen dual-clutch automatic transmission, including: transmission assembly, electronic control system, hydraulic control system, three-phase asynchronous motor, the motor driven frequency controller, ignition lock , power supply, shifting systems, measurement board, OBD diagnose interface, Fault setting system and mobile holder

2. to operate the transmission training platform by original gearshift, to simulate engine speed by adjustable-speed motor, to simulate the speed by adjustable potentiometer, to load transmission by caliper disc brake system

3. The state of the shift is showed by LED light, it can operate in the following mold: parking, reverse gear, neutral gear, the driving gear.

4. the instrument in the platform shows the following parameter: simulation engine speed, output rotational speed and the choice of gear transmission are showed by LED light, oil pressure gauge

5. operating console: to start/shut the engine, accelerator pedal adjust the revolving speed of engine. Including: oil pressure gauge, leakage protector, ignition lock, accelerator pedal and brake pedal.

6. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component.

7. Fault setting system: numeric keypad and Intelligent wireless networks.

8. Wireless network intelligent evaluation system

9. movable bench

10. external power source: AC380V/220V, 50Hz three phase/single phase

11. power: AC380V 5.5KW

12. SIZE: 1250*900*1750mm
