Parameter:

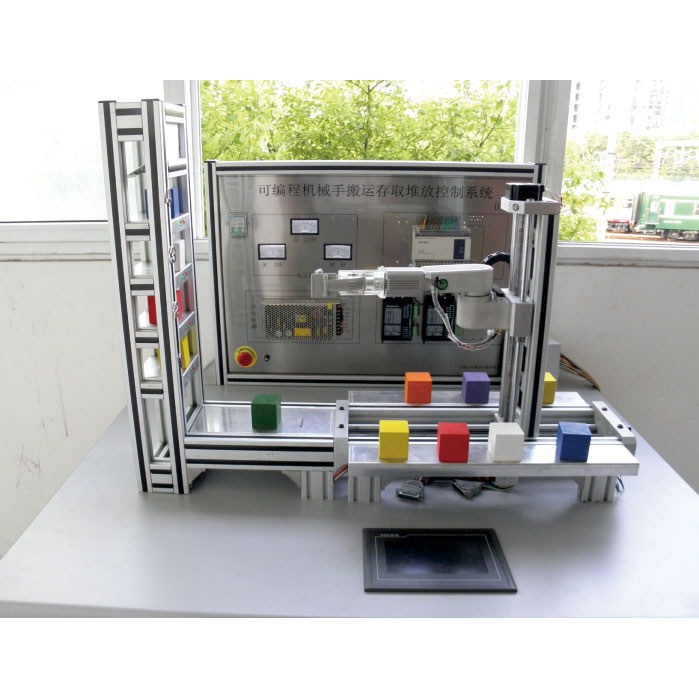

Item NO.: BR-308
Size: 900*1200*800mm
Electric drive: two stepper motors, continuous current dynamo
moving trajectory: from Y,X,Z, wrist 360, little arms 90°，big arm 180°turning and fingers’ catch and release
the parameters of PLC are selected from Mitsubishi, SIEMENS.
2 DC Motors
4 stepper motors
working voltage: single-phase three-wire AC 220V 50HZ
DC motor: 12V or 24V
Stepper motor: 24V
stepping angle: 1.2°
stepping angle accuracy: ±5%
working environment: -20℃～+40℃
insulation resistance: 100MΩMin.DC500V25C
dielectric strength: DC500V/min
insulation grade B 130℃
