Experimental capability:
1. The practice of basic instruction
2. Positive and reverse rotation control of simulate electrical machine
3. Analog TV towers
4. Traffic light control system
5. Automatic delivery loading system
6. Automatic control of water level of water tower
7. Automatic molding machine system
8. Multi-fluid automatic control system
9. Automatic punching machine control system
10. Elevator analog control system
11. Mails automatic sorting system
12. Automatic washer control system
13. Electroplate control system
14. Vending machine system
15. Relay control experiment
16. Simulation control of software
17. Setting up of configuration software
18. Connection of configuration software and PLC
19. Basic operation of configuration software
20. Animation design of configuration software
Configuration:

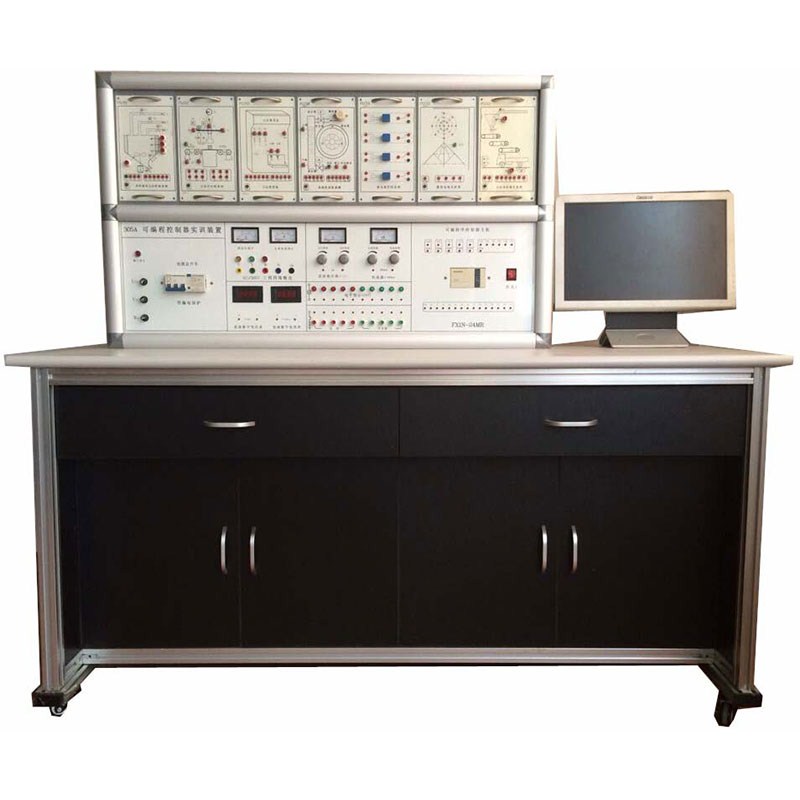

1. Training table
2. Stool
3. Experiment table
4. PLC training element
5. Programming software
6. Programme cable
7. Simulation software
8. PLC element program
9. Experimental wire
10. Training manual instruction
11. Power supply spile
12. Installation auxiliary material
Parameters:
1. Power supply: three-phase four-wire AC 380 V±5% 50 Hz
2. Size: 1600×700×1450
3. Complete machine capacity: 0.3 KVA
4. Control panel PCB
5. Alternating current power supply control unit: three-phase four-wire 380v, single-phase 220v
6. Timer and alarmable recorder: time setting, timing alarming, power dump
7. Direct-current main, direct voltmeter/ampere meter, output and instructions of logic level:
Direct voltage: 0-15v
direct current: 0-20mA
voltmeter range: 0-200v
input impedance: 10MΩ
precision 0.5
ampere meter range: 0～200mA
8. Training table: iron spraying plastics, fireproof, waterproof, wear-resisting high density plate
9. Safety protection: ground protection, earth leakage protection

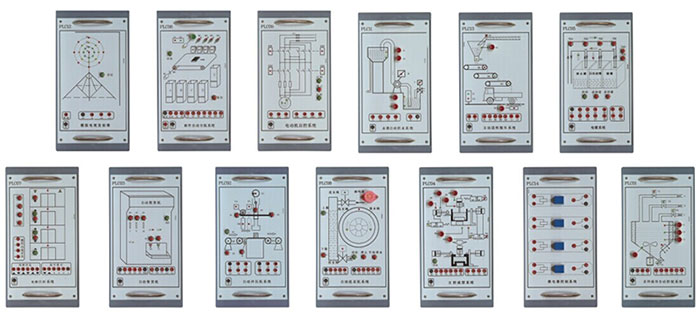

PLC training unit module
