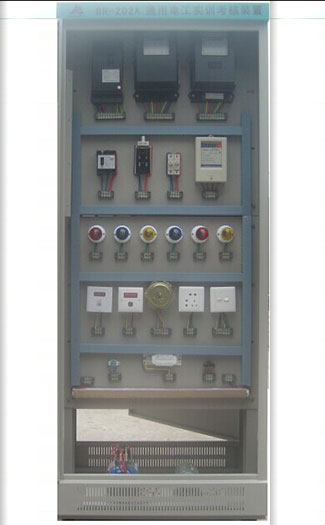

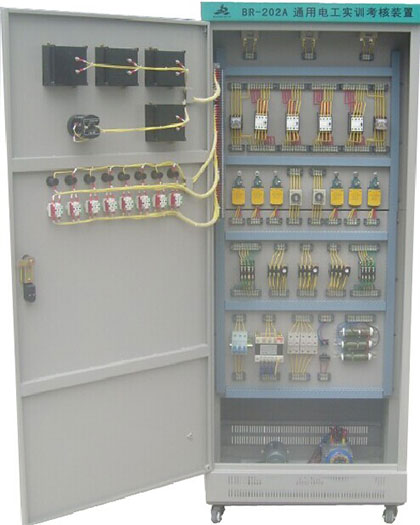

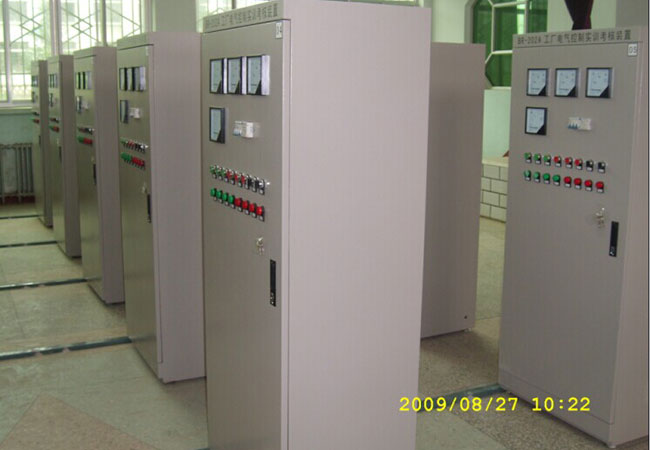

Configuration:

1. Main cabinet

2. The power supply control panel

3. AC contactor

4. Thermorelay

5. Intermediate relay module

6. Travel switch module

7. Electric control module

8. Time relay

9. Universal change-over switch

10. Basic skill training

11. Fluorescent lamp module

12. Three-phase watt-hour meter

13. Three-phase squirrel-cage asynchronous motor

Parameters:

1. Input power nominal voltage: AC380V±5%

2. Rated current: 20A

3. Frequency: 50Hz

4. Environment temperature: -5℃—40℃

5. Relative humidity: ≤85%（25%）

6. Size: 800×480×1850mm

7. Weight: 120kg

Experimental Capability:

1. Incandescent light bulb pilot circuit

2. Fluorescent lamp pilot circuit

3. Touch switch control incandescent light bulb circuit

4. Voice operated switch control stairs incandescent bulb circuit

5. Adjust on-off control incandescent bulb circuit

6. Remote and local control one incandescent bulb circuit

7. Direct mount circuit of single-phase kilowatt hour meter

8. Indirect mount circuit of single-phase kilowatt hour meter

9. Direct mount circuit of three-phase kilowatt hour meter

10. Direct mount circuit of three-phase kilowatt hour meter

11. Installing voltmeter and ampere meter circuit

12. Current transformer and ampere meter connection circuit

13. One current transformer for single-phase loop connection circuit

14. Two current transformers connect into incomplete star connection circuit

15. Three current transformers connect into star connection circuit

16. Two current transformers cross-connection circuit

17. Three current transformers connect into delta connection circuit

18. All transfer switch and voltmeter measure three-phase voltage connect circuit

19. Electric control part

20. Three-phase asynchronous motor electronic control training

21. Three-phase asynchronous motor self-locking control training

22. Three-phase asynchronous motor remote and local control training

23. Three-phase asynchronous motor contactor interlock positive and negative control training

24. Three-phase asynchronous motor double interlock positive and negative control training

25. Three-phase asynchronous motor time-lapse automatic positive and negative control training

26. Dual-motor manual operation order start control training

27. Dual-motor automatic sequence start control training

28. Time-lapse start and stop control

29. Three-phase asynchronous motor manual operation Y/△ start control training

30. Three-phase asynchronous motor automatic sequence Y/△ start control training

31. Three-phase asynchronous motor dynamic braking training

32. Three-phase asynchronous motor reversible bothway dynamic braking training

33. Three-phase asynchronous motor plug braking training

34. Three-phase asynchronous motor autorun control training

35. Three-phase asynchronous motor with inching positive and negative control training

36. Three-phase asynchronous motor with inching autorun control training

37. Three-phase asynchronous motor serial-resistance reduction voltage start manual control training

38. Three-phase asynchronous motor serial-resistance reduction voltage start automatic control training

39. Three-phase asynchronous motor serial-resistance reduction voltage start plug braking control training

40. All transfer switch control motor positive and negative circuit connection training

41. Electric block electric control training

42. C620 lathe control circuit training

43. Three-phase asynchronous motor one-way decompression start and anti-phase braking control circuit

44. Three-phase asynchronous motor stator serial-resistance reduction voltage start manual control circuit

Single phase capacitor start asynchronous motor control circuit
