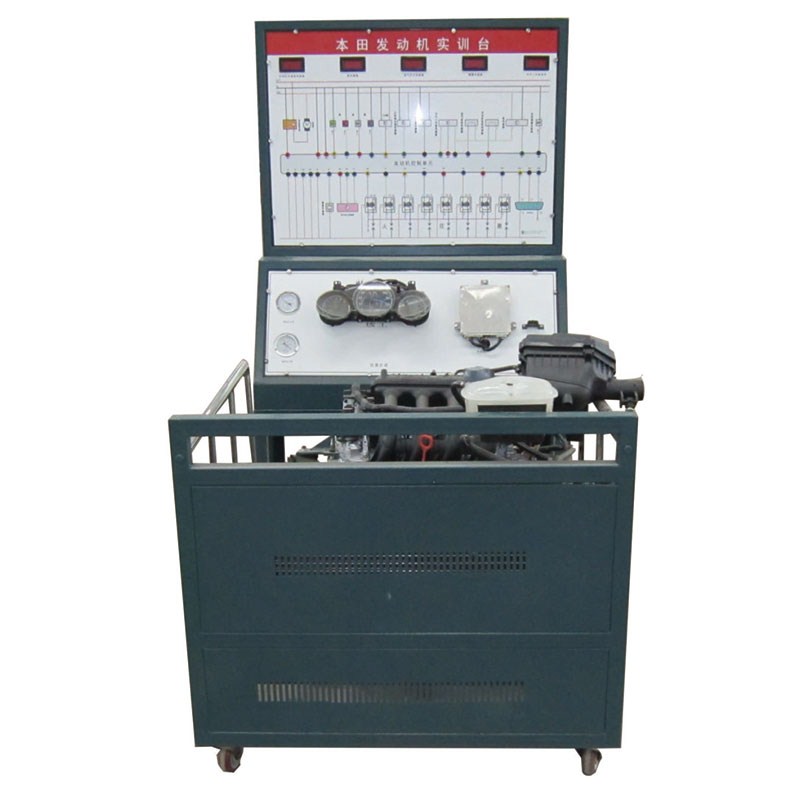

1. This trainer is made by Honda Fit engine, including: Fit engine assembly, engine electronic control system, engine theft-proof system, power system, ignition device, start-up system, charging system, engine fuel supply system, draindown system, Auto instrument panel, operating console, measurement board, OBD diagnose interface, Fault setting system and mobile holder

2. operating console: to start/shut the engine, accelerator pedal adjust the revolving speed of engine. Including: Auto instrument panel, ignition lock, Practical power master switch, accelerator pedal, fuel pressure gauge and vacuum meter

3. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component. The LED shows fuel injection pulse width and throttle percentage.

4. equipped with OBD diagnose interface which is convenient to use diagnostic apparatus to test the fault code and waveform.

5. Fault setting system: numeric keypad and Intelligent wireless networks.

6. Wireless network intelligent evaluation system

7. movable bench

8. the engine is installed into the holder with elasticity to decrease the shake. Protection is set in turning part and high temperature part

9. fuel tank capacity: 20L

10. working power: DC12V 60AH

11. SIZE: 1450*1000*1750mm
