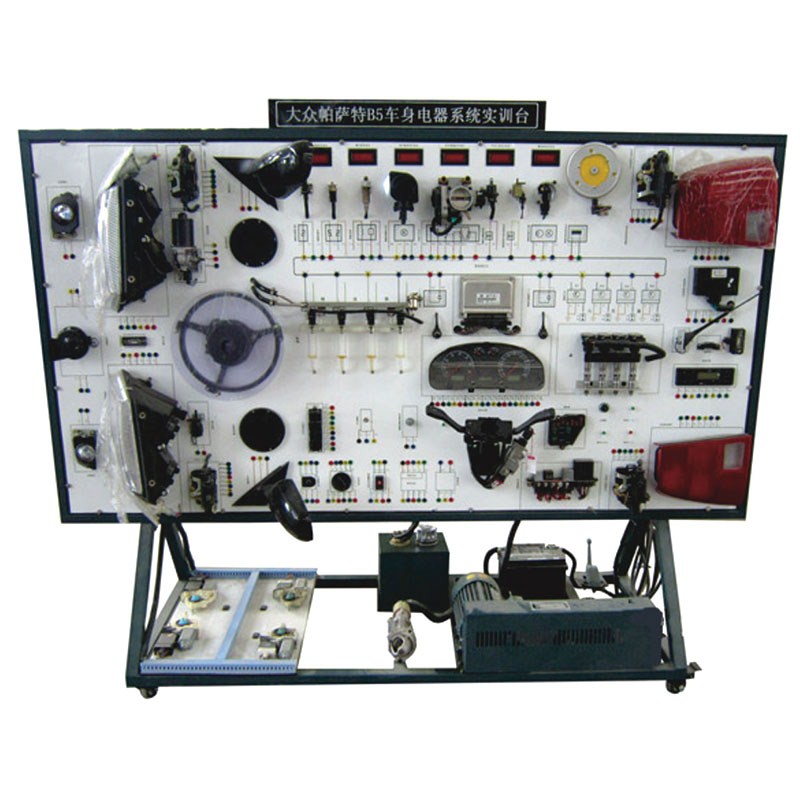

1. equipped with bran-new Volkswagen Passat B5 engine electrical control system element and Vehicle body electrical control system

2. configuration is including: light, sound case, instrument, wiper system, cooling system, power window, control lock, electric rearview mirror, The central patch panel, ignition and injection system, anti-theft system, engine electronic control system, power system, OBD diagnose interface, Fault setting system, traversing carriage.

3. 220V single-phase machine drive the engine to charge the power, then the trainer will get the 12V DC from power.

4. The operation of engine fuel supply system will be dynamic demonstration. We can see the process of fuel injection and Dynamic ignition spark plugs.

5. equipped with OBD diagnose interface which is convenient to use diagnostic apparatus to test the fault code and waveform.

6. measurement board: there are Engine electronic control system circuit diagram and 4mm measured terminal which is used to measure the voltage, resistance, frequency or waveform of circuit component.

7. Fault setting system: numeric keypad and Intelligent wireless networks.

8. Wireless network intelligent evaluation system

9. movable bench

10. external power source: AC220V,50HZ, single-phase

11. motor power: AC 220V, 2.2KW

12. SIZE: 2250*800*1800MM
