Is consist of training table, training plat, hydraulic component, the electric control device and PLC. The training table and training plat are iron double yogon cipher text coating structure.

Overview:

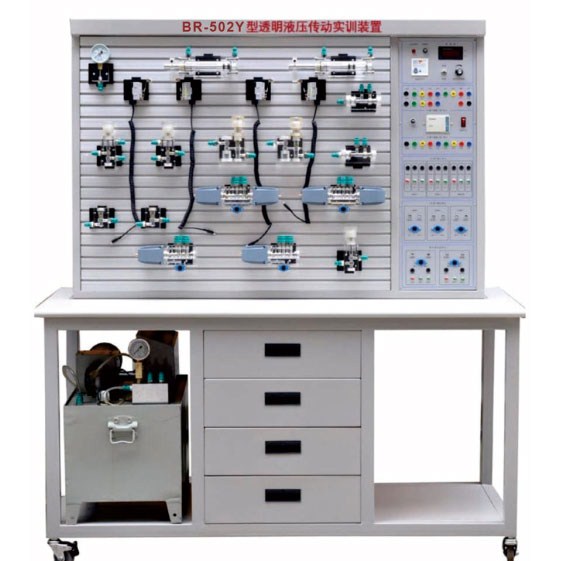

PLC control hydraulic teaching equipment is made by the request of the course of Hydraulic Transmission. This equipment can do experiment of the common hydraulic basic control circuits, it also can achieve hydraulic control technology application experiment, Hydraulic technology curriculum design and study of PLC.

Hydraulic components are made by transparent organic materials which is easy for students to learn its structure, performance and application. Also it is equipped with independent relay control unit which is simple and useful for electric control.

Configuration:

This equipment is consist of training table, electrical control component, hydraulic component, special hydraulic pump station and tools.

The table-board is made by T type aluminium profile which is convenient to install and locate. The rack is made of steel with spraying plastics.

1500mm×640mm×1850mm

1.electric control component

the electric control component is modular organized. There is a guide rail which can install seven control modules which can group and expand arbitrarily. standard configuration: power module, PLC module, input module, output module, relay module and extended module.

Input power: AC220V 50Hz

Output power: DC24V/2A

PLC: Mitsubishi FX1s-14MR, 8 input, 6 output

Input module: cable 9 needle 232 interface connection, 8 way command input signal

Output module: cable 9 needle 232 interface connection

relay control module: command signal control and automatic control for automatic control signal interface

2. hydraulic component

This equipment is designed with specialized component panel, every component has fixed place. Equipped with two-way cylinder, Spring return oil cylinder, pilot operated check valve, reducing valve, auxiliary tank, pressure relay, jacking cylinder, throttle valve, check valve and sequence valve.

3.Hydraulic experiment pump station

It is equipped with special independent hydraulic experiment pump station with Dc motor stepless speed regulation system. The system has the function of speed limit. It can limit the speed of output maximum velocity. It also equipped with Digital high-precision tachometer which can achieve real-time measurement. With Oil pressure setting function, it can set up safety working voltage of output pressure oil.

Working power: AC220V

motor power: 750W

motor speed regulation range: 0-1500

fuel tank capacity:25L

rate-limiting range: 1000-1500

maximum working pressure of oil pump: 2.5MPa

safe pressure range: 0.3 - 2.5 MPa

noise: 58dB

experiment capability

1.direction changing circuit of reversing valve

2. blocking circuit of O type directional valve

3. blocking circuit of pilot operated check valve

4. The pressure setting circuit

5. The secondary pressure circuit

6. decompression circuit of reducing valve

7. boost circuit of pressure cylinder

8. relief circuit of reversing valve

9. oil inlet throttling speed control circuit

10. Oil return throttling speed control circuit

11. Speed gear pump speed control loop

……
