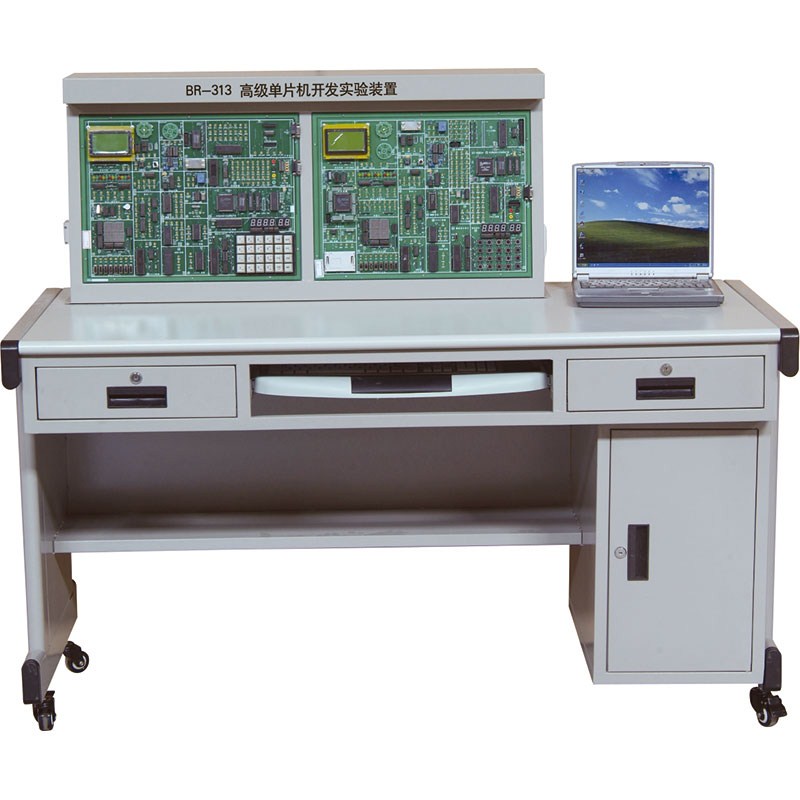

Single Chip Computer/configuration of EDA system

1. 51/96 general purpose simulator: mainboard, core-board and downloader.

2. input interface (A single pulse source, two way 0-5V adjustable power supply, clock generator, 8-digit Toggle Switch, 555 signal source, 8-digit Toggle Switch and the array type keyboard) , the array type keyboard

3. output interface: loudspeaker driver, serial static appearance show, dynamic scan display, 128*64 Lattice graphic liquid crystal display module, 16-bit Logic level display, I2C Bus Clock, crossroads traffic lamp/ turning signal lamp of car/stage lamp, relay control, two 8*8 Double color lattice display and buzzer control.

4. Communication interface chip: USB1.1, CAN2.0, Ethernet, RS232, RS485, USB2.0 and Infrared wireless interface

5. Commonly used interface chip: 74LS164, 74LS165, 8255, 8155, 8253 timer/counter expansion interface, 8250 and 8251 asynchronous communication interface, MAX813 Watchdog interface, 12C Bus Interface, AD/DA conversion, Real Timer /calendar Controller, temperature sensor and temperature control, Infrared transceiver circuit, 8279 keyboard scan, 74S138 decoder, v/F switching circuit, voice chip ISD1420.

6. The memory interface chip: SRAM62256 data storage device, 12C (AT24C02) interface, 93C46 memorizer and program storage.

7. common equipment: DC Motor Drive, stepper motor drive, loudspeaker, buzzer, relay, DS18B20temperature control.
